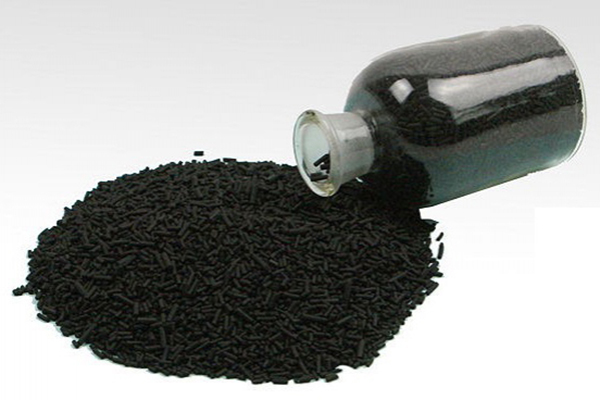

Carbon Molecular sieve

As a desiccant in pressure swing adsorption (PSA) nitrogen production devices, carbon molecular sieves (CMS) separate nitrogen and oxygen in the air to purify and enrich nitrogen at room temperature and pressure.

CMS will adsorb particles less than 10Å when ordinary activated carbon can’t. it features a high relative adsorption strength that is higher than a spherical graphitized polymer carbon (SGPC) and graphitized carbon black (GCB).

Economically, the use of a CMS for high compression nitrogen technology has a lower cost and faster nitrogen generation than traditional deep cooling processes. Nitrogen separated by CMS has been widely used in the following industries:
Inert storage tanks
Pipelines and tankers
Processing and storing perishable foods and beverages
Heat treatment of metals
Processing plastic and fibers
Microchip production

CMS Type Adsorption Pressure Nitrogen Purity (%) Nitrogen Yield (Nm3/h*t) Nitrogen Recovery (%)
CMS220 0.8Mpa 97 340 57
98 260 45
99 245 42
99.5 220 40
99.9 140 27
99.99 100 22
99.999 55 14
CMS240 0.8Mpa 97 360 50
98 285 46
99 260 43
99.5 240 40
99.9 155 29
99.99 110 23
99.999 65 15
CMS260 0.8Mpa 99 320 46
99.5 260 40
99.9 175 29
99.99 120 22
99.999 70 15

Test Temperature All above CMS type tested at the ambient temperature
Particle Diameter Particle diameter 1.3~1.6mm
Bulk density 630~660g/l
Crush Strength 90~100N/Granule
Adsorption cycle 2*60s
Work lifespan ≥ 6 years
Packing 20kgs/40kgs capacity PVC drum
